FA47DM71S4詳細信息
FA47DM71S4
關鍵詞：1.5KW電機與齒輪箱一體機_FA47DM71S4_FA47DT71S4
FA47DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA47DM71S4 | 190.76 | 0.25KW | 6.80rpm | 350N.m | 28Kg | 6550N | 1.15 |
| FA47DM71S4 | 175.38 | 0.25KW | 7.40rpm | 320N.m | 28Kg | 6850N | 1.25 |
| FA47DM71S4 | 150.06 | 0.25KW | 8.70rpm | 275N.m | 28Kg | 7270N | 1.45 |
| FA47DM71S4 | 130.07 | 0.25KW | 10.0rpm | 235N.m | 28Kg | 7540N | 1.65 |
| FA47DM71S4 | 121.57 | 0.25KW | 11.0rpm | 220N.m | 28Kg | 7640N | 1.80 |
| FA47DM71S4 | 105.09 | 0.25KW | 12.0rpm | 193N.m | 28Kg | 7810N | 2.10 |
| FA47DM71S4 | 89.29 | 0.25KW | 15.0rpm | 164N.m | 28Kg | 7950N | 2.40 |
FA47DT71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA47DT71S4 | 190.76 | 0.25KW | 6.80rpm | 350N.m | 28Kg | 6550N | 1.15 |
| FA47DT71S4 | 175.38 | 0.25KW | 7.40rpm | 320N.m | 28Kg | 6850N | 1.25 |
| FA47DT71S4 | 150.06 | 0.25KW | 8.70rpm | 275N.m | 28Kg | 7270N | 1.45 |
| FA47DT71S4 | 130.07 | 0.25KW | 10.0rpm | 235N.m | 28Kg | 7540N | 1.65 |
| FA47DT71S4 | 121.57 | 0.25KW | 11.0rpm | 220N.m | 28Kg | 7640N | 1.80 |
| FA47DT71S4 | 105.09 | 0.25KW | 12.0rpm | 193N.m | 28Kg | 7810N | 2.10 |
| FA47DT71S4 | 89.29 | 0.25KW | 15.0rpm | 164N.m | 28Kg | 7950N | 2.40 |
FA47DM71S4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

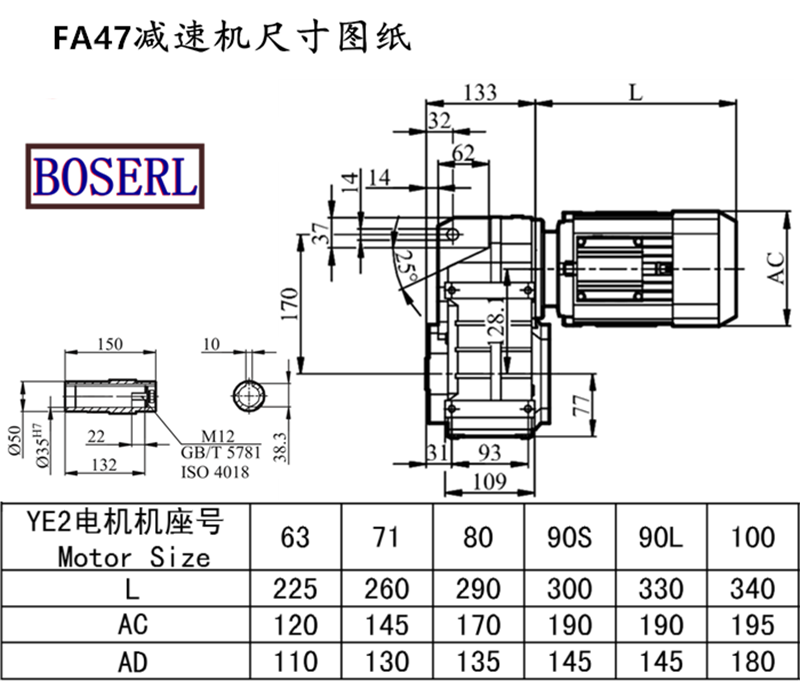

FA47DM71S4齒輪減速機馬達安裝尺寸圖紙
FA47DM71S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.5KW電機與齒輪箱一體機 FA47DM71S4 FA47DT71S4
