德國BOSERL研發制造節能環保減速機電機一體機_帶電機減速器一套_電動機與減速箱_電機減速器,19年創辦中國BOSERL減速機生產廠家伯仕傳動

減速機電機一體機_帶電機減速器一套_德國BOSERL電動機與減速箱生產廠家

咨詢服務熱線:

13360667204

微信13360667204

傘齒輪斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速機廠家 > KA系列減速機廠家

KA37DRN71S4詳細信息

prevnext

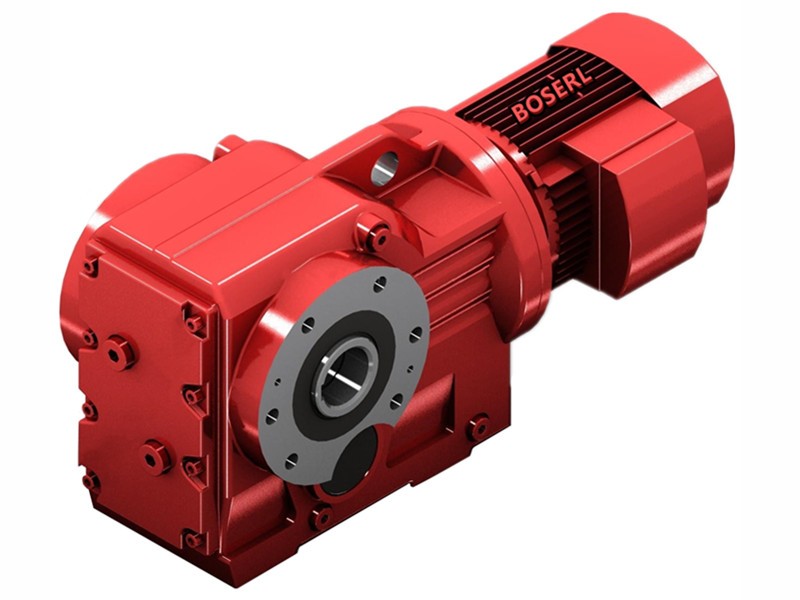

KA37DRN71S4

訂購熱線:13360667204
  1. 詳細信息

關鍵詞:輸出轉數20.5r/min減速機電機_K37DRN71S4_K37DV71S4_20.5rpm一分鐘減速電機_每分鐘轉20.5r齒輪減速箱馬達_20.5r/min/分鐘減速器_20.5rpm電機減速機

KA37DRN71S4減速機電機參數:

型號減速比功率轉數扭矩重量力矩安全系數
KA37DRN71S497.810.37kw14rpm250N.m19kg2520N0.8
KA37DRN71S483.690.37kw16rpm210N.m19kg5470N0.95
KA37DRN71S472.540.37kw19rpm186N.m19kg5690N1.1
KA37DRN71S467.80.37kw20rpm174N.m19kg5630N1.15
KA37DRN71S458.60.37kw24rpm150N.m19kg5500N1.35
KA37DRN71S449.790.37kw28rpm128N.m19kg5350N1.55
KA37DRN71S444.460.37kw31rpm114N.m19kg5230N1.75
KA37DRN71S437.970.37kw36rpm97N.m19kg5060N2.1
KA37DRN71S435.570.37kw39rpm91N.m19kg4990N2.2
KA37DRN71S429.960.37kw46rpm77N.m19kg4800N2.6
KA37DRN71S428.830.37kw48rpm74N.m19kg4750N2.7
KA37DRN71S424.990.37kw55rpm64N.m19kg4590N3.1
KA37DRN71S423.360.37kw59rpm60N.m19kg4510N3.3
KA37DRN71S420.190.37kw68rpm52N.m19kg4350N3.6
KA37DRN71S417.150.37kw80rpm44N.m19kg4160N4.1
KA37DRN71S415.310.37kw90rpm39N.m19kg4040N4.5
KA37DRN71S413.080.37kw105rpm34N.m19kg3860N4.9
KA37DRN71S412.140.37kw114rpm31N.m19kg3780N5.1
KA37DRN71S410.490.37kw132rpm27N.m19kg3630N6
KA37DRN71S48.910.37kw155rpm23N.m19kg3460N7
KA37DRN71S47.96
0.37kw173rpm20N.m19kg3350N7.6
KA37DRN71S46.8
0.37kw203rpm17N.m19kg3190N8.6
KA37DRN71S46.370.37kw217rpm16N.m19kg3130N8.9
KA37DRN71S45.360.37kw257rpm14N.m19kg2970N10

KA37DV71S4減速機電機參數:

型號減速比功率轉數扭矩重量力矩安全系數
KA37DV71S497.810.37kw14rpm250N.m19kg2520N0.8
KA37DV71S483.690.37kw16rpm210N.m19kg5470N0.95
KA37DV71S472.540.37kw19rpm186N.m19kg5690N1.1
KA37DV71S467.80.37kw20rpm174N.m19kg5630N1.15
KA37DV71S458.60.37kw24rpm150N.m19kg5500N1.35
KA37DV71S449.790.37kw28rpm128N.m19kg5350N1.55
KA37DV71S444.460.37kw31rpm114N.m19kg5230N1.75
KA37DV71S437.970.37kw36rpm97N.m19kg5060N2.1
KA37DV71S435.570.37kw39rpm91N.m19kg4990N2.2
KA37DV71S429.960.37kw46rpm77N.m19kg4800N2.6
KA37DV71S428.830.37kw48rpm74N.m19kg4750N2.7
KA37DV71S424.990.37kw55rpm64N.m19kg4590N3.1
KA37DV71S423.360.37kw59rpm60N.m19kg4510N3.3
KA37DV71S420.190.37kw68rpm52N.m19kg4350N3.6
KA37DV71S417.150.37kw80rpm44N.m19kg4160N4.1
KA37DV71S415.310.37kw90rpm39N.m19kg4040N4.5
KA37DV71S413.080.37kw105rpm34N.m19kg3860N4.9
KA37DV71S412.140.37kw114rpm31N.m19kg3780N5.1
KA37DV71S410.490.37kw132rpm27N.m19kg3630N6
KA37DV71S48.910.37kw155rpm23N.m19kg3460N7
KA37DV71S47.96
0.37kw173rpm20N.m19kg3350N7.6
KA37DV71S46.8
0.37kw203rpm17N.m19kg3190N8.6
KA37DV71S46.370.37kw217rpm16N.m19kg3130N8.9
KA37DV71S45.360.37kw257rpm14N.m19kg2970N10

KA37DRN71S4減速機類型:

K..DR..底腳安裝斜齒輪—傘齒輪減速電機

KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機

KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機

KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機

KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機

KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

KA..DR..空心軸斜齒輪─傘齒輪減速電機

KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機

KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機

KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機

KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機


KA37DRN71S4減速機馬達安裝尺寸圖紙



KA37DRN71S4減速機生產工廠展示:看廠請?zhí)崆叭祛A(yù)約

雙輸出孔減速機應用案例展示:

關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家

KA系列減速機型號:KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機

KA系列減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間

如需工程師幫選型,請加微信13827261050,留言告知工程師參數要求



標簽:  平移2噸負載電機減速機 KA37DRN71S4 KA37DV71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA37DRN71S4減速機樣本 點擊下載
KA37DRN71S4三維圖紙 點擊下載
