FF107R77DM71S4詳細信息

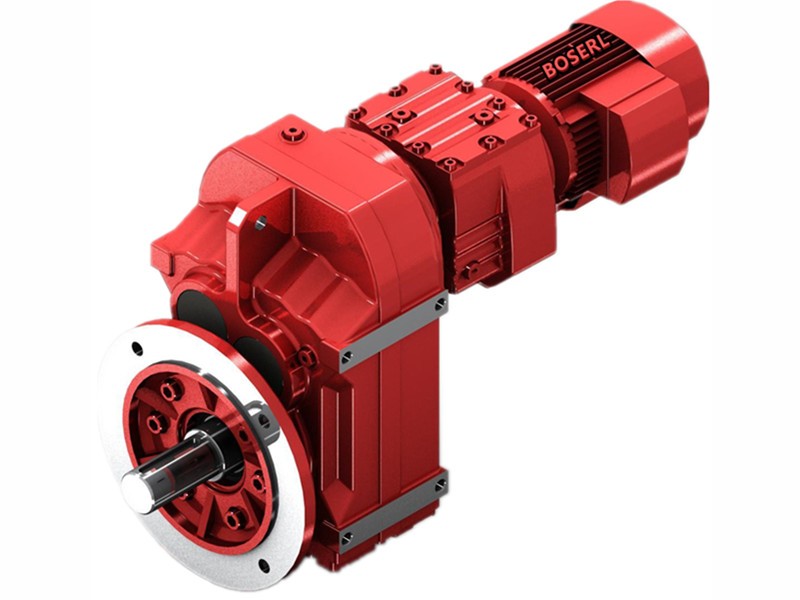

FF107R77DM71S4
關鍵詞：110KW用什么平行軸斜齒輪減速電機_FF107R77DM71S4_FF107R77DRS100LS4
FF107R77DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107R77DM71S4 | 5954 | 0.25KW | 0.22r/min | 9050N.m | 448kg | 46000N | 0.85 |
| FF107R77DM71S4 | 5223 | 0.25KW | 0.25r/min | 7890N.m | 448kg | 49300N | 0.95 |
| FF107R77DM71S4 | 4567 | 0.25KW | 0.28r/min | 7120N.m | 448kg | 51300N | 1.10 |
| FF107R77DM71S4 | 3521 | 0.25KW | 0.37r/min | 5430N.m | 448kg | 55300N | 1.40 |
| FF107R77DM71S4 | 3037 | 0.25KW | 0.43r/min | 4780N.m | 448kg | 56800N | 1.60 |
| FF107R77DM71S4 | 2756 | 0.25KW | 0.47r/min | 4340N.m | 448kg | 57700N | 1.75 |
| FF107R77DM71S4 | 2369 | 0.25KW | 0.55r/min | 3730N.m | 448kg | 59000N | 2.10 |
| FF107R77DM71S4 | 2068 | 0.25KW | 0.63r/min | 3250N.m | 448kg | 59900N | 2.40 |
| FF107R77DM71S4 | 1597 | 0.25KW | 0.81r/min | 2490N.m | 448kg | 61300N | 3.10 |
| FF107R77DM71S4 | 1401 | 0.25KW | 0.93r/min | 2150N.m | 448kg | 61900N | 3.60 |
FF107R77DRS100LS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107R77DRS100LS4 | 560 | 2.2KW | 2.50r/min | 7590N.m | 470kg | 50000N | 1.00 |
| FF107R77DRS100LS4 | 489 | 2.2KW | 2.90r/min | 6620N.m | 470kg | 52500N | 1.15 |
| FF107R77DRS100LS4 | 640 | 2.2KW | 2.20r/min | 8730N.m | 470kg | 46900N | 0.90 |
| FF107R77DRS100LS4 | 436 | 2.2KW | 3.30r/min | 5950N.m | 470kg | 54100N | 1.30 |
| FF107R77DRS100LS4 | 370 | 2.2KW | 3.80r/min | 5040N.m | 470kg | 56200N | 1.50 |
| FF107R77DRS100LS4 | 333 | 2.2KW | 4.30r/min | 4540N.m | 470kg | 57300N | 1.70 |
FF107R77DM71S4減速機電動機類型：
F107R77DM71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA107BR77DM71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV107BR77DM71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA107R77DM71S4空心軸安裝平行軸—斜齒輪減速機
FV107R77DM71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF107R77DM71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF107R77DM71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ107R77DM71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ107R77DM71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF107R77DM71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH107BR77DM71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH107R77DM71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF107R77DM71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ107R77DM71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

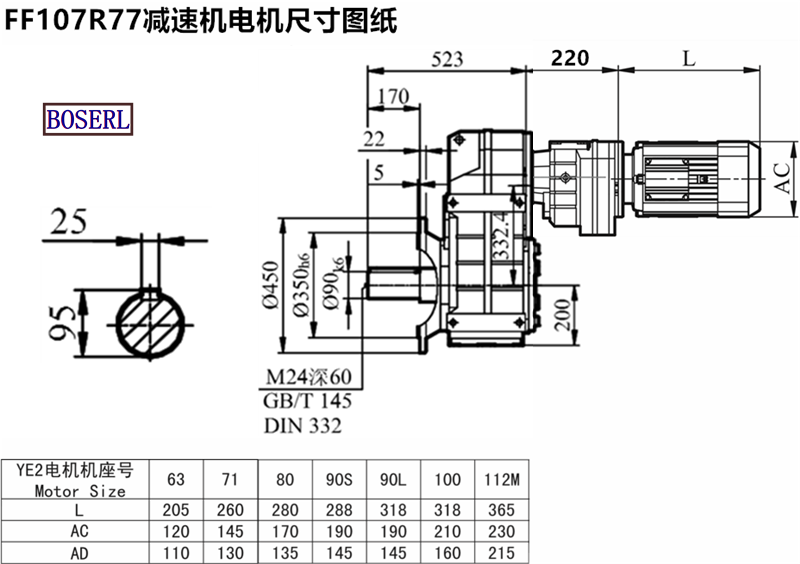

FF107R77DM71S4減速機電動機安裝尺寸圖紙
FF107R77DM71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 110KW用什么平行軸斜齒輪減速電機 FF107R77DM71S4 FF107R77DRS100LS4
