FAF107RF77-Y0.75KW詳細信息
FAF107RF77-Y0.75KW
關鍵詞：132KW平行軸減速箱_FAF107RF77-Y0.75KW_FAF107RF77-Y63M4
FAF107RF77-Y0.75KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF107RF77-Y0.75KW | 1826 | 0.75KW | 0.79r/min | 8120N.m | 454kg | 48600N | 0.95 |
| FAF107RF77-Y0.75KW | 1597 | 0.75KW | 0.90r/min | 7220N.m | 454kg | 51000N | 1.05 |
| FAF107RF77-Y0.75KW | 1401 | 0.75KW | 1.00r/min | 6310N.m | 454kg | 53300N | 1.20 |
| FAF107RF77-Y0.75KW | 1243 | 0.75KW | 1.20r/min | 5530N.m | 454kg | 55100N | 1.40 |
| FAF107RF77-Y0.75KW | 1087 | 0.75KW | 1.30r/min | 4920N.m | 454kg | 56500N | 1.55 |
| FAF107RF77-Y0.75KW | 950 | 0.75KW | 1.50r/min | 4220N.m | 454kg | 58000N | 1.80 |
| FAF107RF77-Y0.75KW | 834 | 0.75KW | 1.70r/min | 3680N.m | 454kg | 59100N | 2.10 |
| FAF107RF77-Y0.75KW | 640 | 0.75KW | 2.20r/min | 2860N.m | 454kg | 60600N | 2.70 |
| FAF107RF77-Y0.75KW | 436 | 0.75KW | 3.30r/min | 1940N.m | 454kg | 62300N | 3.90 |
FAF107RF77-Y63M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF107RF77-Y63M4 | 14767 | 0.12KW | 0.10r/min | 8850N.m | 443.5kg | 65000N | 0.90 |
| FAF107RF77-Y63M4 | 11348 | 0.12KW | 0.11r/min | 7550N.m | 443.5kg | 65000N | 1.05 |
| FAF107RF77-Y63M4 | 10039 | 0.12KW | 0.13r/min | 6600N.m | 443.5kg | 65000N | 1.20 |
| FAF107RF77-Y63M4 | 8548 | 0.12KW | 0.14r/min | 5890N.m | 443.5kg | 65000N | 1.35 |
| FAF107RF77-Y63M4 | 7674 | 0.12KW | 0.17r/min | 5150N.m | 443.5kg | 65000N | 1.55 |
| FAF107RF77-Y63M4 | 6767 | 0.12KW | 0.19r/min | 4490N.m | 443.5kg | 65000N | 1.80 |
| FAF107RF77-Y63M4 | 5954 | 0.12KW | 0.22r/min | 3700N.m | 443.5kg | 65000N | 2.20 |
| FAF107RF77-Y63M4 | 5223 | 0.12KW | 0.24r/min | 3210N.m | 443.5kg | 65000N | 2.50 |
| FAF107RF77-Y63M4 | 4567 | 0.12KW | 0.27r/min | 2910N.m | 443.5kg | 65000N | 2.70 |
| FAF107RF77-Y63M4 | 3521 | 0.12KW | 0.32r/min | 2670N.m | 443.5kg | 65000N | 3.00 |

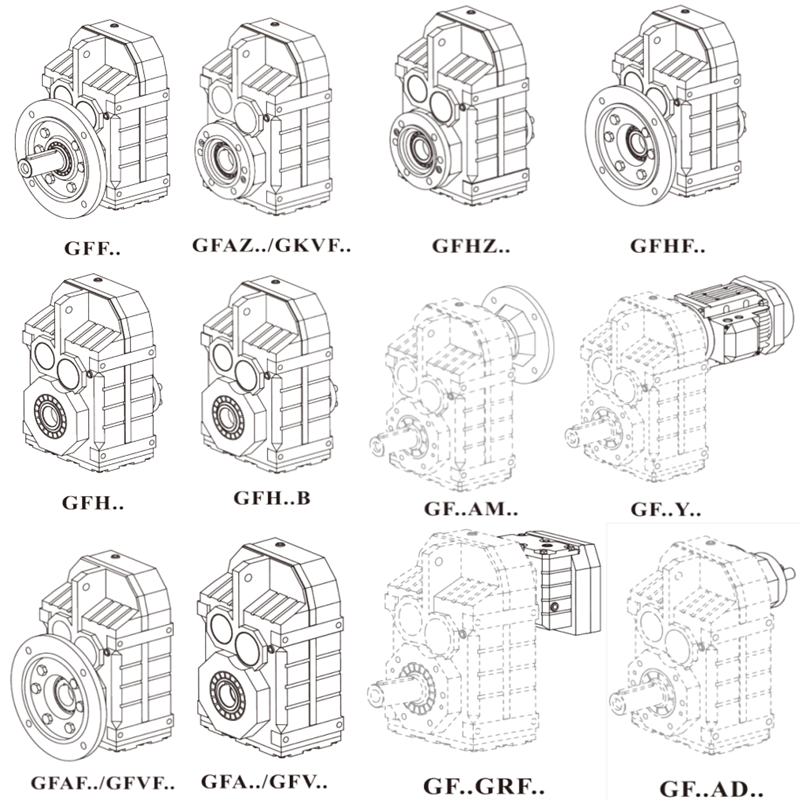

FAF107RF77-Y0.75KW減速機電動機類型：
F107RF77-Y0.75KW底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA107BRF77-Y0.75KW底腳空心軸安裝平行軸—斜齒輪減速機
FV107BRF77-Y0.75KW底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA107RF77-Y0.75KW空心軸安裝平行軸—斜齒輪減速機
FV107RF77-Y0.75KW花鍵空心軸安裝平行軸—斜齒輪減速機
FAF107RF77-Y0.75KW是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF107RF77-Y0.75KW是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ107RF77-Y0.75KW是B14法蘭安裝平行軸—斜齒輪減速機
FVZ107RF77-Y0.75KW是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF107RF77-Y0.75KW是B5法蘭安裝平行軸—斜齒輪減速機
FH107BRF77-Y0.75KW底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH107RF77-Y0.75KW是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF107RF77-Y0.75KW是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ107RF77-Y0.75KW是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

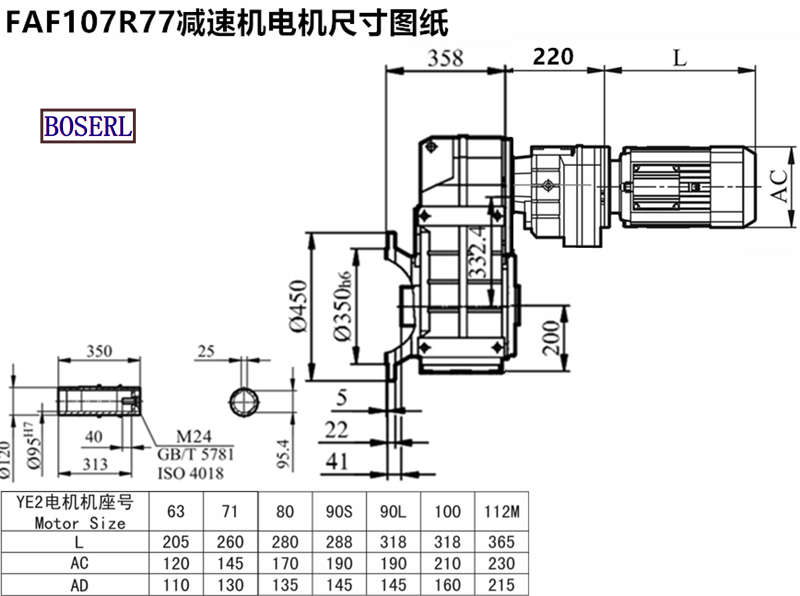

FAF107RF77-Y0.75KW減速機電動機安裝尺寸圖紙
FAF107RF77-Y0.75KW減速機電動機生產廠家，看廠請?zhí)崆叭祛A約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 132KW平行軸減速箱 FAF107RF77-Y0.75KW FAF107RF77-Y63M4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| FAF107RF77Y0.75KW減速機樣本 |
|
| FAF107RF77Y0.75KW減速機三維圖紙 |
|
